Steel Line Pipe Selection for Oil and Gas Service
Line pipe is selected inside a pipeline design, not from diameter and grade alone. Design pressure, temperature, transported fluid, corrosion allowance, installation method, fracture control, sour-service review, manufacturing process, end preparation, coating, testing, traceability, and regulatory rules all affect the purchase specification. The responsible pipeline engineer should approve the final datasheet.
Selection inputs
Service conditions to define
- Design code, design pressure and temperature, fluid composition, phase, flow regime, corrosion allowance, and planned operating envelope.
- Onshore, offshore, buried, above-ground, crossing, reel-lay, bending, or other installation route, with external loads and field-joint requirements.
- Sweet or potentially sour service, carbon dioxide, chlorides, water chemistry, microbiological risk, and internal corrosion-control strategy.
- Fracture-control, low-temperature, fatigue, collapse, strain-based, or seismic requirements identified by the pipeline engineering basis.
Failure review
Risks the specification must address
- Wrong wall, grade, or dimensional basis can invalidate the design calculation even when the nominal pipe size appears correct.
- Manufacturing defects, weld discontinuities, poor end geometry, or inadequate NDT can affect field welding and integrity acceptance.
- Sour-service cracking risk cannot be addressed by a grade label alone. Material chemistry, hardness, manufacturing, welding, environment, and the applicable sour-service rules need review.

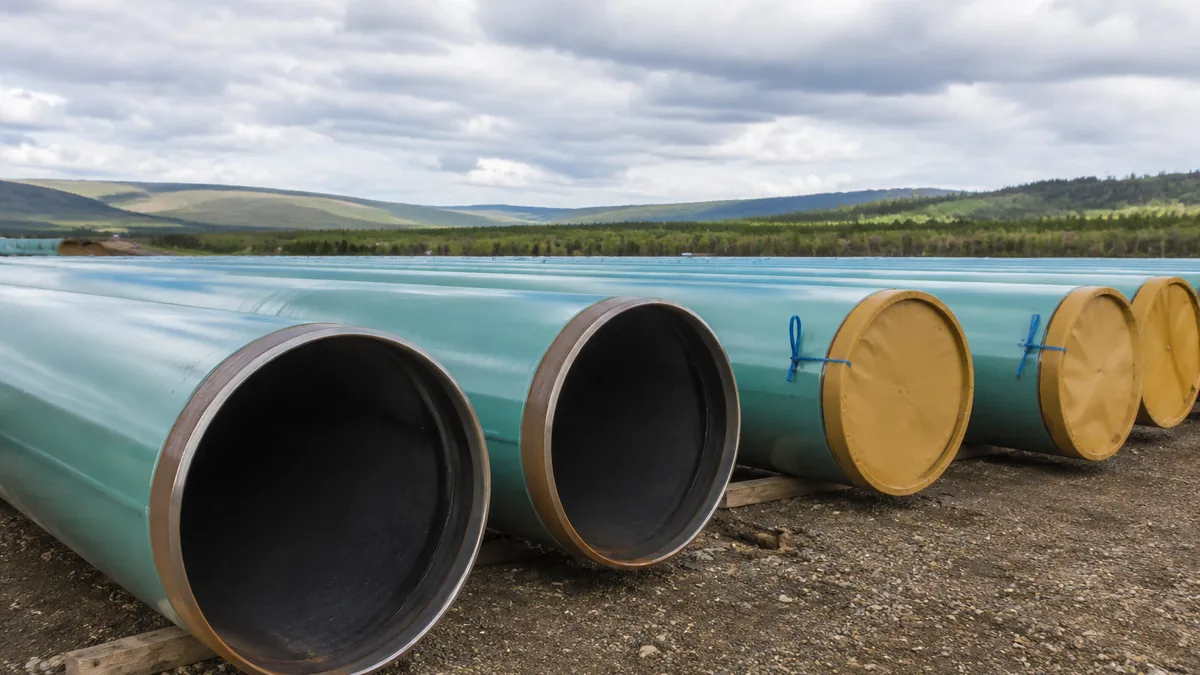

- Coating damage, poor end protection, trapped moisture, handling dents, or storage contamination can create installation and corrosion problems before commissioning.
Procurement matrix
Compare the service, material route, and evidence
| Design need | Pipe route to review | RFQ controls |
|---|---|---|
| Conventional transmission line within API 5L scope | Seamless or welded API 5L pipe as selected by the engineering specification | Grade, PSL, process, OD, wall, length, ends, tests, coating, and documents |
| Large-diameter welded pipeline | LSAW, HSAW or SSAW route when permitted by design and project specification | Forming and weld process, NDT, dimensional tolerances, hydrotest, toughness, and field-weld needs |
| Potential sour service | Material and manufacturing route qualified against the project sour-service basis | Fluid data, ISO 15156 or project criteria, hardness, chemistry, HIC or SSC testing when specified |
| Low-temperature or fracture-critical line | Grade, PSL, delivery condition, and toughness program defined by engineering | Charpy or DWTT criteria, temperature, sampling, heat treatment, traceability, and acceptance |
Acceptance package
Standards, inspection, and fabrication
Standards and inspection
- State the design code separately from the product standard. Include API 5L edition, grade, PSL, manufacturing process, delivery condition, and project supplementary requirements.
- Define OD, wall, length, tolerances, end preparation, bevel, out-of-roundness, straightness, mass, marking, and any gauging or field-weld controls.
- List chemistry, tensile, impact or DWTT, hardness, hydrostatic test, NDT method and coverage, dimensional inspection, coating inspection, and retest rules.
- Specify certificate, manufacturing procedure review, inspection and test plan, traceability, third-party points, coating records, and final data book index.
Fabrication controls
- For bends, induction work, field welding, or heavy cold forming, state the downstream process so the engineer can review grade, chemistry, heat treatment, wall allowance, and testing.
- Define end condition, bevel geometry, root face, cap or protector, internal cleanliness, coupling or flange scope, and coating cutback for the joining method.
- Keep pipe manufacturing, field welding, coating, and pipeline construction qualifications as separate approval packages.
Continue with the registered product owners
API 5L carbon steel pipe
Review the registered API 5L product owner and its purchasing fields.
Open ownerERW, LSAW and SSAW welded pipe
Review welded manufacturing routes while retaining the project process restrictions.
Open ownerPipe size and schedule selection
Use a dimensional reference before transferring size fields into an RFQ.
Open ownerOrder-ready data
RFQ requirements
Send these fields together so technical review starts from one consistent specification.
Prepare an RFQ- 01
Design code, product standard and edition, grade, PSL, process, service description, pressure, temperature, and fluid data
- 02
OD or NPS, wall or schedule, corrosion allowance, length, quantity, mass, tolerance, and end preparation
- 03
Toughness, sour-service, hardness, chemistry, tensile, hydrotest, NDT, dimensional, and traceability requirements
- 04
Internal or external coating, cutback, end protection, marking, inspection plan, certificate, and final data book
- 05
Installation method, destination, handling and storage plan, delivery sequence, and requested shipment window
Frequently asked questions
Does API 5L grade and PSL complete a line pipe specification?
No. A complete request also includes process, dimensions, wall, length, ends, service data, toughness, supplementary tests, coating, inspection, documents, handling, and the pipeline design requirements.
When should sour-service requirements be added?
The pipeline engineer should assess the fluid and operating conditions against the project and applicable sour-service rules. If required, the datasheet needs material, hardness, chemistry, manufacturing, welding, and test criteria.
Can pipe schedule be used as the pressure rating?
Schedule identifies a nominal wall series for certain sizes. Pressure suitability depends on actual dimensions, material, temperature, corrosion allowance, design factor, joint, code, and the engineering calculation.
